Advantages of Grooved Piping Systems: Enhancing Efficiency, Safety, and Cost Savings

Grooved piping systems have emerged as a leading choice in modern mechanical piping installations. Their unique design and installation benefits have made them popular in a range of industries—from HVAC and fire protection to water treatment and industrial applications. In this article, we explore the advantages of grooved piping systems, explain how they work, and highlight why they offer a superior alternative to traditional joining methods.

What Are Grooved Piping Systems?

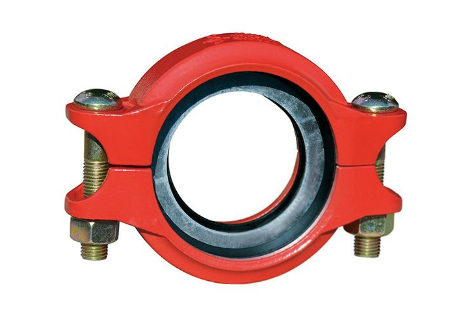

A grooved piping system is a method of joining pipes using grooved couplings rather than welding, flanging, or threading. The system comprises four key components:

- Grooved Pipe Ends: Pipes have grooves formed by cold-forming or machining.

- Gaskets: These seal the joint by fitting snugly into the groove.

- Coupling Housings: They encase the gasket and engage with the grooves.

- Nuts and Bolts: These are tightened (typically with a socket or impact wrench) to secure the coupling.

There are two main types of grooved couplings:

- Flexible Couplings: Allow limited angular and linear movement, accommodating pipe expansion and contraction.

- Rigid Couplings: Provide a fixed, leak-proof connection without movement.

Understanding these elements is crucial to appreciating the numerous advantages grooved systems offer compared to traditional piping methods.

Key Advantages of Grooved Piping Systems

1. Faster Installation and Reduced Downtime

Grooved systems can be installed significantly faster than welded or flanged joints. With no need for pre-weld preparations, fire watch, or lengthy cooling periods, contractors can complete installations up to three to five times faster. This quick installation not only saves labor costs but also minimizes downtime in operational facilities.

2. Enhanced Safety

One of the most compelling advantages of grooved piping is the improved safety it offers:

- No Open Flames: Since installation requires no welding, there is no risk of fire hazards, toxic fumes, or burns.

- Reduced Physical Strain: The installation process is straightforward, requiring basic hand tools instead of specialized welding equipment.

- Safer Work Environments: This is especially beneficial in occupied spaces like hospitals or schools where traditional methods would pose increased risks.

3. Lower Total Installed Costs

Although the material cost of grooved fittings may be slightly higher initially, overall expenses are reduced by:

- Reduced Labor Hours: The speed of installation lowers labor costs.

- Minimal Downtime: Quick maintenance and repair mean operations can resume faster.

- Simplified Maintenance: Routine checks and maintenance are easier, cutting long-term costs.

4. Accommodation of Thermal Expansion and System Movement

Grooved couplings, particularly flexible types, are designed to handle thermal expansion and contraction. This ability:

- Reduces Stress: The piping system can accommodate slight movements without compromising the seal.

- Prevents Leaks: The design maintains integrity even under system expansion or slight misalignments.

- Enhances Longevity: It leads to a longer lifespan for the piping system by reducing fatigue on the joints.

5. Ease of Maintenance and Disassembly

Maintenance is simplified in grooved systems. In cases where repair or modification is needed:

- Quick Disassembly: Couplings can be easily removed and reassembled.

- No Need to Drain Entire Systems: Maintenance tasks can often be performed without complete system shutdown.

- Simplified Inspections: Visual inspection of joints is straightforward, reducing the need for specialized equipment such as X-ray machines.

6. Versatility and Material Compatibility

Grooved piping systems are highly versatile:

- Broad Material Compatibility: They can join pipes made from various materials, including steel, PVC, copper, and ductile iron.

- Flexible Applications: Their adaptability makes them ideal for fire protection, HVAC, water treatment, and industrial systems.

- Scalable for Different Sizes: Whether used in small residential systems or large industrial applications, grooved fittings offer reliable performance.

Applications in Modern Industries

The numerous advantages of grooved piping systems have led to their widespread adoption. Key applications include:

- Fire Protection Systems: Reliable, leak-proof joints are crucial for life-safety systems.

- HVAC Installations: Rapid installation and ease of maintenance make them ideal for large-scale heating, ventilation, and air conditioning systems.

- Industrial and Water Treatment Plants: The durability and adaptability of grooved systems support high-pressure environments and dynamic operational demands.

Conclusion

Grooved piping systems provide an efficient, cost-effective, and safer alternative to traditional pipe joining methods. With their quick installation, reduced downtime, excellent adaptability to system movements, and ease of maintenance, they stand out as a superior solution in the evolving landscape of piping technologies. As industries continue to prioritize safety, efficiency, and sustainability, grooved piping systems are poised to remain a preferred choice for engineers and contractors alike.
