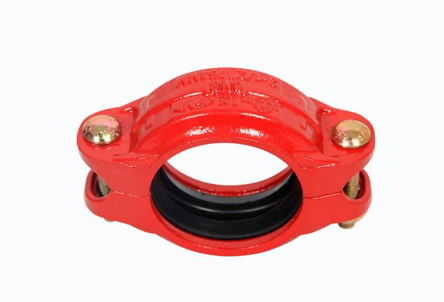

Difference Between Rigid and Flexible Couplings

There are two primary types of couplings: rigid couplings, which provide a solid, high-precision connection between two shafts, and flexible couplings, which accommodate slight misalignments but offer lower torque transfer. Each type has its own advantages and disadvantages, making it essential to select the right one for your specific application.

How Do Rigid Couplings and Flexible Couplings Differ?

The primary distinction between rigid and flexible couplings lies in the type of connection they provide. Rigid couplings create a firm, inflexible connection between two shafts, enabling smooth and efficient torque transmission throughout the system. Flexible couplings, on the other hand, allow for some movement to accommodate misalignment, which can result in a slight loss of torque. While metallic flexible couplings offer better torque capability compared to other flexible options, some torque loss still occurs.

Additional differences between rigid and flexible couplings include:

- Alignment Requirements: Flexible couplings can handle slightly misaligned shafts. Rigid couplings are torsionally stiff and can’t tolerate any misalignment. This applies to both shafts that are physically misaligned at rest and parts that may cause misalignment during operation due to thermal changes.

- Backlash: Rigid couplings, particularly newer aluminum models, can significantly reduce backlash to zero or near-zero levels, while flexible couplings do not provide the same level of backlash control.

- Maintenance Requirements: Rigid couplings are stiff and do not absorb vibrations, which can cause early wear on misaligned parts. Regular checks for wear, alignment, and lubrication are necessary. In contrast, flexible couplings handle vibration and shock without causing excessive wear.

- Complexity: Flexible couplings are often more complex and may have additional components, making operation and maintenance more complicated. Rigid couplings are simpler and more straightforward in comparison.

- Applications: Flexible couplings are suitable for servos with low to moderate torque and potential shaft misalignment, such as in machining tools, semiconductor manufacturing, and packaging equipment. Rigid couplings are ideal for high-torque applications, shaft support, and push-pull use cases.

- Cost: Rigid couplings are generally more affordable, while flexible couplings tend to be more expensive.

Advantages and Disadvantages of Rigid Couplings and Flexible Couplings

In machine design, selecting the appropriate coupling is crucial. Rigid couplings maintain precise shaft alignment, ideal for high-speed machinery while Flexible couplings accommodate misalignment, damping vibrations, suitable for automotive systems or conveyors.

Rigid Couplings:

Advantages: High torque transmission, precise shaft alignment, minimal maintenance, high-speed stability.

Disadvantages: No misalignment compensation, higher stresses, limited shock absorption, installation challenges.

Flexible Couplings:

Advantages: Misalignment compensation, vibration damping, reduced maintenance, ease of installation.

Disadvantages: Lower torque transmission, less precise alignment, complex design, higher initial cost.

How to Choose the Right Coupling

Choosing the right coupling for your machine design depends on several factors, including the type and size of the shafts and coupled equipment, shaft alignment accuracy and tolerance, load characteristics, environmental conditions, operating temperature, and the cost and availability of the coupling.

In general, rigid couplings are best for applications with well-aligned shafts and steady, uniform loads, while flexible couplings are more suited for moderately misaligned shafts and variable, dynamic loads. However, it is essential to assess the specific requirements and constraints of your machine design to ensure the coupling selected will effectively meet your needs.
