Guide to Mechanical Tees for Fire Sprinkler Systems

Mechanical tees simplify the retrofitting and expansion of sprinkler systems

Tees are pipe fittings with three outlets—two aligned in a straight line and a third positioned at a 90-degree angle. In fire sprinkler systems, a primary water main supplies water throughout the building, while lighter branch lines distribute it to the sprinkler heads. Tees connect these branch lines to the main line, accommodating changes in pipe elevation and direction.

During renovations or retrofits—such as building expansions or updates to meet code requirements—new branch lines and tees may be necessary. While grooved pipe couplings allow for easier disassembly, modifying an entire sprinkler system to install standard tees can be time-consuming. Mechanical tees streamline this process by attaching directly to the existing pipe, requiring only a drilled hole and a secure, water-tight outlet to establish new water flow and pipe direction.

How Mechanical Tees Work

Mechanical tees, as part of grooved piping systems, use gaskets secured by housings to attach a new line of pipe to an existing one. The mechanical force from the bolts and nuts combined with the gasket and lubricant creates a tight seal around a hole drilled into a run of pipe. This eliminates the need to cut or disassemble pipe, potentially reducing man-hours and materials costs for something like the installation of a simple branch line.

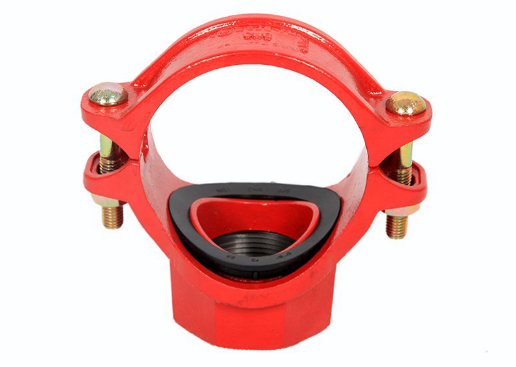

Components of a Mechanical Tee

Mechanical tees share fundamental components with grooved couplings, including nuts, bolts, housings, and gaskets. In grooved couplings, the gasket wraps around the circumference of two abutting pipes, while the housing secures them end-to-end. In contrast, mechanical tees feature a gasket that fits around a hole drilled perpendicular to the pipe's centerline, with the housing and hardware securing the outlet in place.

The main components of a mechanical tee include:

- Upper housing – Holds the gasket and contains the outlet

- Lower housing – Secures the upper housing to the pipe

- Gasket – Creates a watertight seal

- Bolts and nuts – Fasten the assembly together

Some mechanical tees use a U-bolt instead of a lower housing. The U-bolt wraps around the pipe to provide a secure connection, offering a cost-effective alternative to traditional mechanical tee designs.

Pipe Size for Fire Sprinkler Mechanical Tees

The housing of a mechanical tee is designed to fit around the pipe receiving an outlet. Its inner diameter corresponds to the outer diameter of the pipe, ensuring a secure connection. Mechanical tees are sized based on nominal pipe size (NPS). For example, a 3" mechanical tee is made to fit a 3" nominal pipe, meaning the housing's inner diameter is 3.5 inches—the actual outer diameter of the pipe.

Outlet Size and Type for Mechanical Tees

Mechanical tees create outlets on pipes, but the outlet size does not always match the main pipe size. Many mechanical tees are reducing tees, meaning the branch pipe is smaller than the main pipe. Outlet sizes are specified in nominal pipe size (NPS) rather than actual dimensions.

It's important to note that the outlet size—whether nominal or actual—does not correspond to the hole size drilled into the pipe. For example, a 1.5-inch nominal outlet (with an actual outer diameter of 1.9 inches) requires a 2.7-inch hole. The correct hole size is always specified in the manufacturer's instructions.

Mechanical tee outlets are designed to accommodate different types of pipe connections, with the most common being grooved and threaded. Threaded outlets are female and follow Female National Pipe Thread (FNPT) sizing standards.

Materials, Listings, and Performance of Fire Sprinkler Mechanical Tees

Properly manufactured mechanical tees meet industry standards and certifications. When selecting mechanical tees, look for UL and FM markings to ensure the fittings are listed and approved for fire sprinkler systems. Like all pipe fittings, mechanical tees have performance limits, including maximum working pressure, which is specified by the manufacturer. Additionally, the housing and gasket materials play a crucial role in durability and suitability for different applications.

Housing Materials

Most mechanical tee housings are made from ductile iron, a material known for its high tensile strength, wear resistance, and ability to dissipate heat and vibration. Ductile iron housings should comply with ASTM A536: Standard Specification for Ductile Iron Castings. Other available materials include copper, stainless steel, carbon steel, CPVC, and HDPE.

Gasket Types for Mechanical Tees

A synthetic rubber gasket ensures a tight seal in a mechanical tee. The gasket material determines the pipe's compatibility with different temperatures, chemicals, and environmental conditions. The three primary gasket materials are EPDM, nitrile, and silicone:

- EPDM (Ethylene Propylene Diene Monomer): Ideal for fire sprinkler systems, EPDM resists heat (up to 230°F/110°C), water, acidic environments, and salt exposure. However, it degrades when exposed to petroleum products, hydrocarbon solvents, and aromatic compounds.

- Nitrile Rubber: Best for petroleum-based fluids, hydrocarbon solvents, and hydraulic fluids, nitrile withstands exposure to oils and fuels but has a lower heat tolerance (up to 150°F/65°C).

- Silicone: Highly resistant to extreme temperatures, silicone gaskets remain flexible in subzero conditions (-76°F to -148°F / -60°C to -100°C) and endure heat up to 572°F (300°C). However, they offer poor resistance to petroleum and hydrocarbons and are commonly used in food and medical applications.

Applications and Installation of Mechanical Tees for Sprinklers

Mechanical tees simplify retrofitting and remodeling by eliminating the need for extensive pipe cutting or disassembly. When adding a new branch line to a fire sprinkler main, the installation method depends on its location:

- Near the end of the pipe run – Removing a few grooved couplings and inserting a conventional tee is typically straightforward.

- In the middle of the network – Cutting and repositioning multiple pipes may be necessary, making installation more labor-intensive.

- With welded, soldered, or other rigid connections – Disassembling and reassembling sprinkler lines can be time-consuming and require additional materials.

Mechanical tees streamline the process by allowing for direct installation onto an existing pipe. Instead of cutting and moving large sections of piping, simply drill a hole, attach the mechanical tee, and secure a watertight outlet—reducing labor, costs, and downtime.
