The Difference Between Equal Tee and Reducing Tee for Pipe Fittings

An equal tee features three openings of identical nominal diameter, enabling perfectly balanced flow distribution to all branches. In contrast, a reducing tee incorporates one branch outlet smaller than its in‑line run outlets, allowing smooth transitions between different pipe sizes. Recognizing these differences in form, fluid dynamics, material standards, and typical use cases is essential for selecting the right fitting in plumbing, HVAC, chemical processing, and other piping systems.

Understanding Tee Fittings

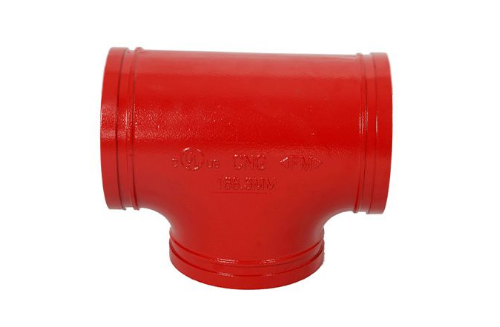

What Is an Equal Tee?

An equal tee (sometimes called a straight tee) is a T‑shaped fitting in which the main run and branch outlets all share the same nominal diameter. This uniform sizing ensures that fluid divides evenly among the three paths, minimizing local pressure drops and turbulence. Equal tees are commonly butt‑welded or threaded according to standards such as ASME B16.9 for butt‑weld fittings and ASTM specifications for smaller sizes.

What Is a Reducing Tee?

A reducing tee (or reducer tee) resembles an equal tee except its branch outlet is of smaller diameter than the run outlets. Manufacturers describe reducing tees by listing run size A, opposite run size B, and branch size C (e.g., 1½" × ½" × 1¼"). This design accommodates piping networks where a main line must feed a smaller‑diameter branch without requiring a separate reducer plus an equal tee.

Key Differences Between Equal Tee and Reducing Tee

Dimensional Characteristics

- Equal Tee: All three outlets share the same nominal size, e.g., 4" × 4" × 4".

- Reducing Tee: Two in‑line outlets match (e.g., 4" × 4"), while the branch is smaller (e.g., 3")—notated as 4" × 4" × 3".

Fluid Flow and Performance

- Balanced Distribution: Equal tees split flow evenly, ideal for systems demanding uniform pressure, such as water mains and HVAC loops.

- Size Transition: Reducing tees tailor flow rates and velocities in branch lines, preventing backflow and accommodating equipment with lower inlet sizes.

Manufacturing Standards & Materials

- Standards: Butt‑weld tees (both equal and reducing) typically conform to ASME B16.9 (carbon/alloy steel) and MSS SP‑43 (stainless/nickel alloys).

- Materials: Available in stainless steel, brass, bronze, carbon steel, PVC, CPVC, and more to suit pressure, temperature, and corrosion requirements.

Pressure & Temperature Ratings

- Equal and reducing tees come in classes ranging from 150 lb up to 2500 lb, with temperature limits defined by material and ASTM grade.

Applications and Use Cases

Equal Tee Applications

- Plumbing Systems: Branching building water supply lines where identical flows are needed.

- Chemical Processing: Distributing reactants uniformly to parallel reactors or vessels.

- HVAC: Splitting chilled‑water or steam mains into equal‑sized risers.

Reducing Tee Applications

- Pump Discharge: Feeding smaller‑diameter instrumentation lines from a larger pump outlet.

- Process Branching: Connecting analytical sample lines or drain lines to main process piping.

- Equipment Inlets: Directly coupling branch lines to heat exchangers, filters, or control valves with smaller nozzles.

Selection Criteria for Tee Fittings

System Requirements

1. Flow Rates & Velocity: Choose reducing tees when branch flow must be throttled or accelerated.

2. Pressure Drops: Use equal tees for minimal pressure loss in balanced networks.

Material & Cost Considerations

- Material Compatibility: Match fitting material to fluid chemistry and temperature.

- Cost & Inventory: Reducing tees reduce the need for extra reducers plus equal tees, potentially lowering part count and installation time.

Installation Considerations

- Orientation: Ensure the reducing leg is correctly aligned to avoid strain on pipe joints.

- Support: Provide adequate support for heavier fittings, especially in large steel sizes.

- Welding vs. Threading: Select based on site accessibility, pressure class, and maintenance needs.

Conclusion

Choosing between an equal tee and a reducing tee hinges on whether you require uniform distribution or a size transition in your piping network. Equal tees excel in balanced, multi‑branch systems, while reducing tees streamline connections between dissimilar pipe sizes—saving space and simplifying layouts. By evaluating flow requirements, material compatibility, and installation constraints, engineers and plumbers can ensure optimal performance, safety, and cost‑effectiveness in every project.
