What Are the Types of Grooved Pipe Fittings?

Grooved pipe fittings have become an essential part of modern piping systems, offering efficiency, durability, and ease of installation. These fittings are widely used across industries such as construction, plumbing, oil and gas, and HVAC systems. Below, we provide a comprehensive overview of the different types of grooved pipe fittings, their functions, and applications.

What Are Grooved Pipe Fittings?

Grooved pipe fittings are connectors used to join two or more pipes in a system. They feature grooves on the pipe ends that facilitate quick and secure connections with couplings. The grooved design eliminates the need for threading or welding, making installation faster and more cost-effective. These fittings are ideal for both rigid and flexible pipe systems, ensuring efficient fluid or gas flow.

Key Components of Grooved Pipe Fittings

Before delving into the types, it’s essential to understand the core components involved in grooved piping systems:

1. Grooved Couplings: Used to join two pipe sections.

2. Gaskets: Provide a leak-proof seal between pipes.

3. Bolts and Nuts: Secure the coupling firmly in place.

4. Grooved Ends: The pipe ends are machined with grooves to facilitate easy assembly.

Types of Grooved Pipe Fittings

1. Grooved Couplings

Grooved Couplings are the backbone of grooved piping systems. They are used to connect two pipes securely. There are two primary types of grooved couplings:

- Flexible Couplings: Allow limited movement and flexibility, making them ideal for systems subject to vibration, expansion, or contraction.

- Rigid Couplings: Provide a strong, immovable connection, suitable for systems requiring stability and rigidity.

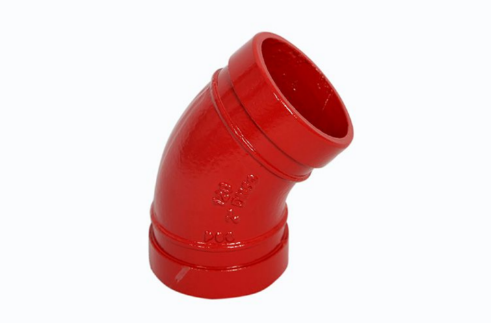

2. Grooved Elbows

Grooved elbows are designed to change the direction of fluid or gas flow in a piping system. They are available in various angles, including 45°, 90°, and 180°, allowing for customized flow direction based on system requirements.

3. Grooved Tees

Grooved tees enable the division or combination of fluid flow in a pipeline. These fittings are commonly used in systems where branching is required. They come in equal tee and reducing tee configurations to accommodate different pipe diameters.

4. Grooved Reducers

Grooved reducers are essential when connecting pipes of varying diameters. Grooved reducers come in two types:

- Concentric Reducers: Maintain a symmetrical flow by aligning the centerlines of both pipes.

- Eccentric Reducers: Offset the centerlines, typically used to prevent air pockets in horizontal piping systems.

5. Grooved Caps and Plugs

Caps and plugs are used to close the ends of pipes temporarily or permanently. They are an effective way to isolate parts of the system during maintenance or modifications.

6. Grooved Crosses

Grooved crosses are four-way connectors that allow fluid or gas to flow in multiple directions. These fittings are essential for complex piping systems requiring multiple branches.

7. Grooved Flanges

Flanges facilitate the connection of grooved pipes to other components, such as valves, pumps, or equipment. They are typically bolted and provide a secure and leak-proof connection.

8. Grooved Mechanical Tees

Mechanical tees are used to create branch connections without cutting or welding. They are ideal for retrofitting existing systems or adding branches to main pipelines.

9. Grooved Outlets

Outlets provide a convenient point for connecting smaller diameter pipes to larger pipelines. They come in threaded or plain-end configurations.

Advantages of Grooved Pipe Fittings

1. Ease of Installation: Grooved fittings eliminate the need for welding or threading, significantly reducing installation time.

2. Cost-Effective: Minimal labor and equipment are required, making them a budget-friendly option.

3. Versatility: Suitable for various piping materials, including steel, ductile iron, and PVC.

4. Leak-Proof: High-quality gaskets ensure a secure and watertight connection.

5. Maintenance-Friendly: Easy to disassemble and reassemble, facilitating quick repairs or replacements.

Applications of Grooved Pipe Fittings

Grooved pipe fittings are utilized in numerous industries, including:

- Fire Protection Systems: Common in sprinkler systems due to their reliability and rapid installation.

- HVAC Systems: Used for connecting air conditioning and heating ducts.

- Industrial Applications: Ideal for chemical processing, oil refineries, and water treatment plants.

- Plumbing Systems: Provide efficient solutions for water and gas distribution.

- Mining Operations: Used for transporting slurry, water, or compressed air.

How to Choose the Right Grooved Pipe Fitting

When selecting grooved pipe fittings, consider the following factors:

1. Material Compatibility: Ensure the fitting material matches the pipe material to avoid corrosion or wear.

2. Pressure Rating: Verify the fitting can handle the system’s operating pressure.

3. Temperature Resistance: Choose fittings suitable for the system’s temperature range.

4. Application Needs: Select the appropriate type of fitting based on the system’s flow requirements.

Conclusion

Grooved pipe fittings are a revolutionary innovation in piping systems, offering unparalleled efficiency, reliability, and ease of use. From couplings and elbows to mechanical tees and reducers, each fitting type serves a specific purpose in creating robust and versatile piping systems. By understanding the different types and their applications, you can select the right grooved fittings for your project, ensuring optimal performance and longevity.
