· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Type: Short/Standard/Long
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice

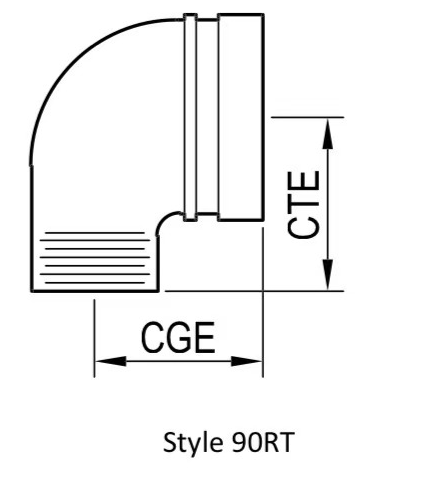

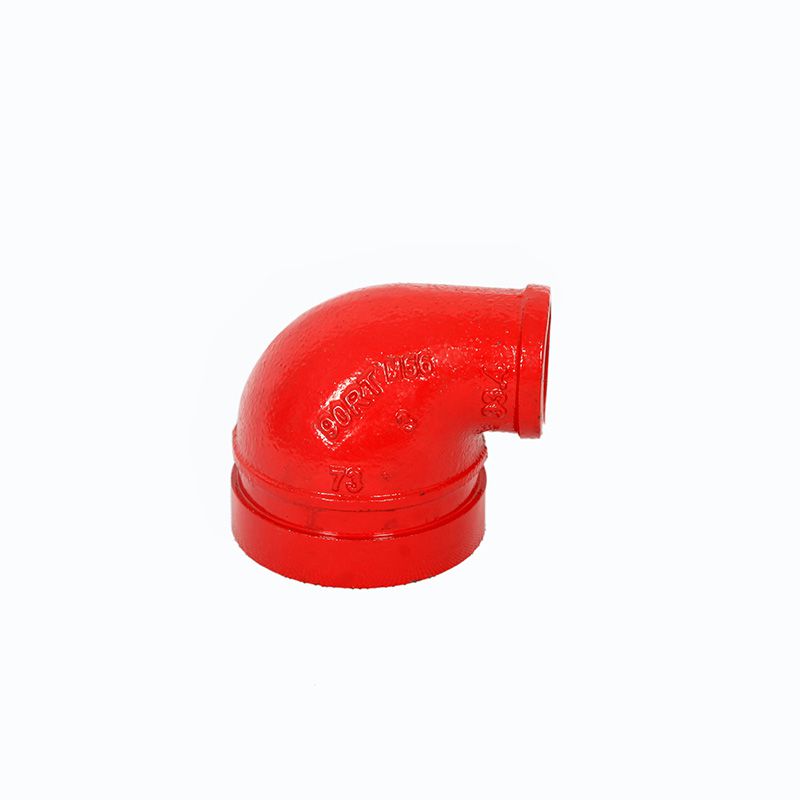

(90RT) 90°REDUCING ELBOW
| SIZE | CTE | CGE | |||
| mm | mm | inch | mm | inch | |
| 42*21 | 48 | 1.89 | 32 | 1.26 | |
| 42*27 | 51 | 2.01 | 34 | 1.34 | |
| 42*33 | 55 | 2.17 | 37 | 1.46 | |
| 48*21 | 48 | 1.89 | 35 | 1.38 | |
| 48*27 | 51 | 2.01 | 37 | 1.46 | |
| 48*33 | 55 | 2.17 | 40 | 1.58 | |
| 60*21 | 48 | 1.89 | 41 | 1.62 | |
| 60*27 | 51 | 2.01 | 43 | 1.69 | |
| 60*33 | 55 | 2.17 | 46 | 1.81 | |
