· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Type: Short/Standard/Long
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice

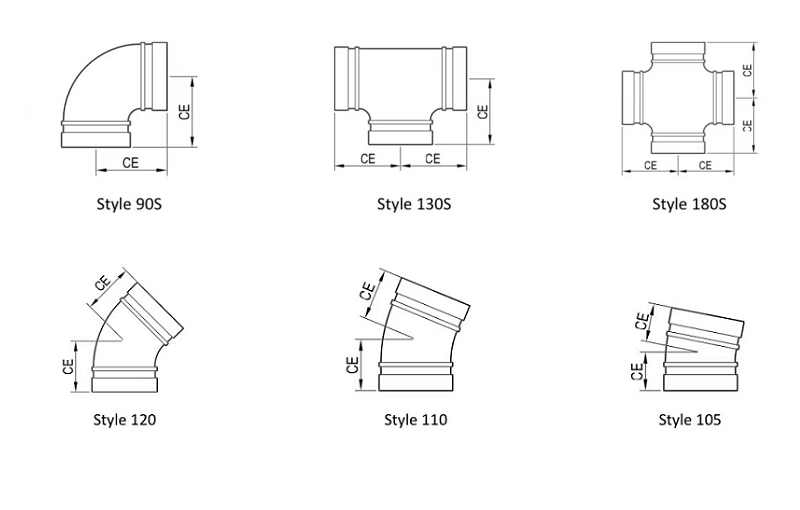

| SIZE | CE | |
| mm | mm | inch |
| 60 | 70 | 2.76 |
| 73 | 76 | 2.99 |
| 76 | 76 | 2.99 |
| 89 | 86 | 3.39 |
| 114 | 102 | 4.02 |
| 140 | 124 | 4.89 |
| 141 | 124 | 4.89 |
| 165 | 140 | 5.52 |
| 168 | 140 | 5.52 |
| 216 | 173 | 6.82 |
| 219 | 173 | 6.82 |

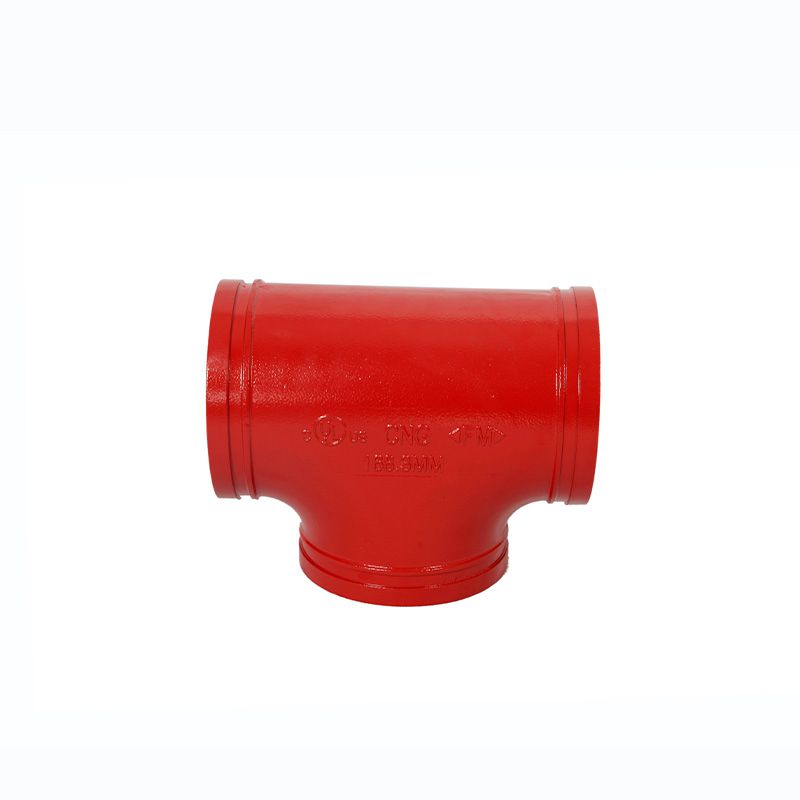

EQUAL TEE (LR)
| SIZE | CE | |
| mm | mm | inch |
| 33 | 57 | 2.25 |
| 42 | 70 | 2.76 |
| 48 | 70 | 2.76 |
| 60 | 83 | 3.27 |
| 73 | 95 | 3.74 |
| 76 | 95 | 3.74 |
| 89 | 108 | 4.26 |
| 114 | 127 | 5.00 |
| 140 | 140 | 5.52 |
| 141 | 140 | 5.52 |
| 165 | 165 | 6.50 |
| 168 | 165 | 6.50 |
| 216 | 197 | 7.76 |
| 219 | 197 | 7.76 |
Cost-Effective Bulk Sourcing: MOQ 100 units with 30% volume discounts – ideal for oil & gas, fire sprinkler, and chemical plant projects.
Zero Welding, High Efficiency: Grooved/threaded equal tees reduce installation time by 50% vs welded tees.
Global Compliance: ASTM A234, ANSI B16.9, UL/FM, CE, and API 6A certified – risk-free for international tenders.
Stainless Steel (304/316): Corrosion-resistant for chemical & marine applications.
Carbon Steel (ASTM A105): 10,000 PSI yield strength for high-pressure oil pipelines.
Ductile Iron (ASTM A536): Impact-resistant for fire protection systems (NFPA compliant).
300~5,000 PSI Ratings: Customize pressure grades for LNG pipelines or low-pressure HVAC.
Triple-Lock Sealing: EPDM/PTFE gaskets prevent leaks under extreme vibration.
Non-Standard Sizes: 1/2” to 48” diameters with flanged, threaded, or grooved ends.
Laser Marking: Traceable batch numbers and compliance logos (UL/FM/CE).
Q: Can you provide equal tees with grooved ends for Victaulic couplings?
Yes! Our grooved tees meet ANSI B16.41 standards for seamless compatibility.
Q: How to ensure material traceability?
All batches include MTRs (Mill Test Reports) + QR code tracking via our portal.
Q: Do you support urgent project deadlines?
Expedited production (7 days) available for 1,000+ unit orders.
