· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice

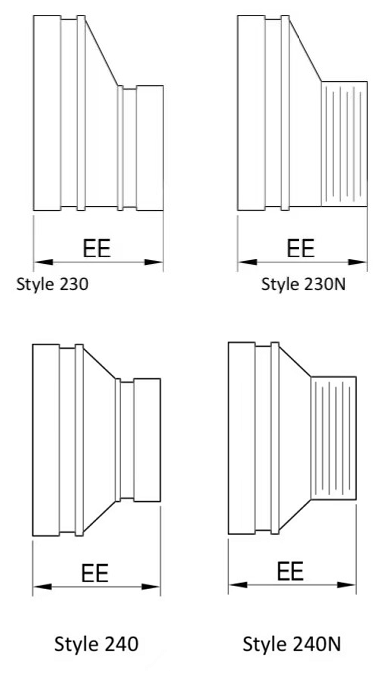

(240) GROOVED CONCENTRIC REDUCER
| SIZE | CE | |
| mm | mm | inch |
| 273*219 | 152 | 5.99 |
| 219*168 | 127 | 5.00 |
| 219*165 | 127 | 5.00 |
| 219 | 127 | 5.00 |
| 219*140 | 127 | 5.00 |
| 219*114 | 127 | 5.00 |
| 219*89 | 127 | 5.00 |
| 219*76 | 127 | 5.00 |
| 219*60 | 127 | 5.00 |
| 216*165 | 127 | 5.00 |
| 216*140 | 127 | 5.00 |
| 216*114 | 127 | 5.00 |
| 168*141 | 102 | 4.02 |
| 168*114 | 102 | 4.02 |
| 168*89 | 102 | 4.02 |
| 168*76 | 102 | 4.02 |
| 168*73 | 102 | 4.02 |
| 168*60 | 102 | 4.02 |
| 165*140 | 102 | 4.02 |
| 165*114 | 102 | 4.02 |
| 165*89 | 102 | 4.02 |
| 165*76 | 102 | 4.02 |
| 165*60 | 102 | 4.02 |
| 165*48 | 102 | 4.02 |
| 141*114 | 89 | 3.51 |
| 141*89 | 89 | 3.51 |
| 141*73 | 89 | 3.51 |
| 141*60 | 89 | 3.51 |
| 140*89 | 89 | 3.51 |
| 140*76 | 89 | 3.51 |
| 140*60 | 89 | 3.51 |
| 114*89 | 76 | 2.99 |
| 114*76 | 76 | 2.99 |
| 114*73 | 76 | 2.99 |
| 114*60 | 76 | 2.99 |
| 114*48 | 76 | 2.99 |
| 114*42 | 76 | 2.99 |
| 114*33 | 76 | 2.99 |
| 89*76 | 64 | 2.52 |
| 89*73 | 64 | 2.52 |
| 89*60 | 64 | 2.52 |
| 89*48 | 64 | 2.52 |
| 89*42 | 64 | 2.52 |
| 89*33 | 64 | 2.52 |
| 76*60 | 64 | 2.52 |
| 76*48 | 64 | 2.52 |
| 76*42 | 64 | 2.52 |
| 76*33 | 64 | 2.52 |
| 73*60 | 64 | 2.52 |
| 73*42 | 64 | 2.52 |
| 60*48 | 64 | 2.52 |
| 60*42 | 64 | 2.52 |
| 60*33 | 64 | 2.52 |
| 48*42 | 64 | 2.52 |
| 42*33 | 64 | 2.52 |
(240N) THREADED CONCENTRIC REDUCER
| SIZE | CE | |
| mm | mm | inch |
| 216*33 | 127 | 5.00 |
| 216*42 | 127 | 5.00 |
| 216*48 | 127 | 5.00 |
| 216*60 | 127 | 5.00 |
| 219*33 | 127 | 5.00 |
| 219*42 | 127 | 5.00 |
| 219*48 | 127 | 5.00 |
| 219*60 | 127 | 5.00 |
| 168*73 | 102 | 4.02 |
| 168*60 | 102 | 4.02 |
| 168*48 | 102 | 4.02 |
| 168*42 | 102 | 4.02 |
| 168*33 | 102 | 4.02 |
| 165*76 | 102 | 4.02 |
| 165*60 | 102 | 4.02 |
| 165*48 | 102 | 4.02 |
| 165*42 | 102 | 4.02 |
| 165*33 | 102 | 4.02 |
| 140*76 | 89 | 3.51 |
| 140*60 | 89 | 3.51 |
| 140*48 | 89 | 3.51 |
| 140*42 | 89 | 3.51 |
| 114*76 | 76 | 2.99 |
| 114*60 | 76 | 2.99 |
| 114*48 | 76 | 2.99 |
| 114*42 | 76 | 2.99 |
| 114*33 | 76 | 2.99 |
| 89*76 | 64 | 2.52 |
| 89*73 | 64 | 2.52 |
| 89*60 | 64 | 2.52 |
| 89*48 | 64 | 2.52 |
| 89*42 | 64 | 2.52 |
| 89*33 | 64 | 2.52 |
| 76/73*60 | 64 | 2.52 |
| 76*60 | 64 | 2.52 |
| 76*48 | 64 | 2.52 |
| 76*42 | 64 | 2.52 |
| 76*33 | 64 | 2.52 |
| 73*60 | 64 | 2.52 |
| 73*48 | 64 | 2.52 |
| 73*42 | 64 | 2.52 |
| 73*33 | 64 | 2.52 |
| 60*48 | 64 | 2.52 |
| 60*42 | 64 | 2.52 |
| 60*33 | 64 | 2.52 |
