· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Branch: Female thread, NPT / BSPT
· Bolt & Nut: Carbon steel
· Gasket: EPDM, nitrile, silicone rubber, etc.
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice

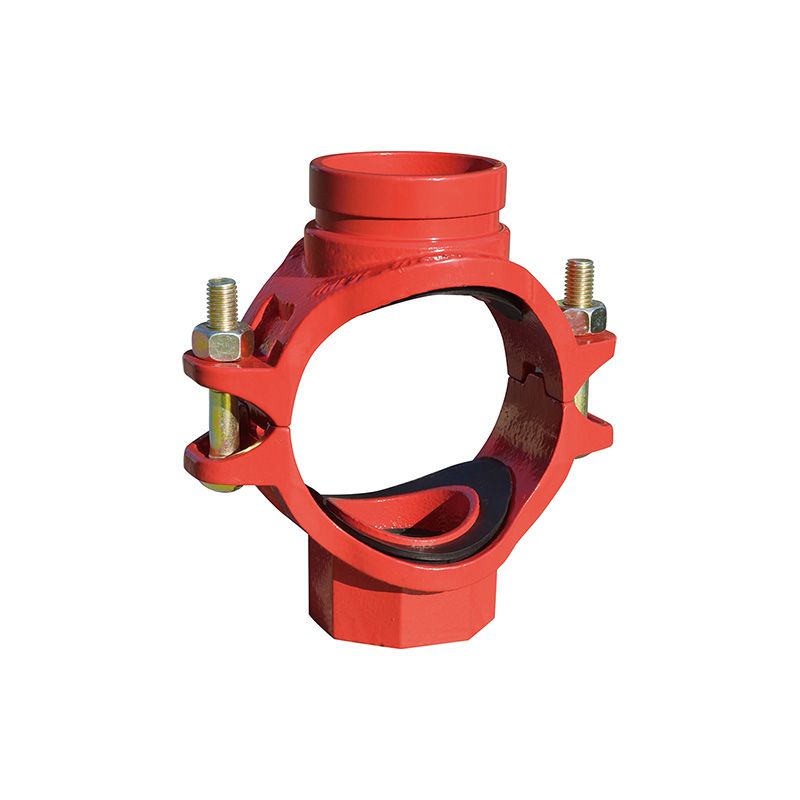

Grooved & Threaded Mechanical Cross is built by 1 pieces of model 3G’s outlet housing and 1 pieces of model 3J's outlet housing.
All sizes of mechanical tee can be combined into a mechanical cross, but must be combined according to certain principles, otherwise it will affect the strength of the pipeline.
