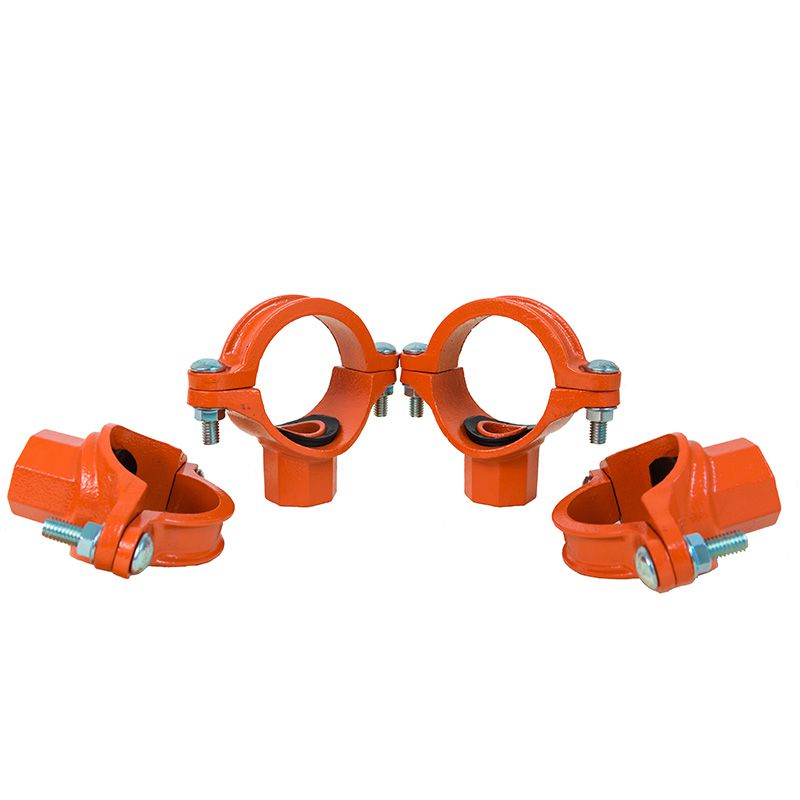

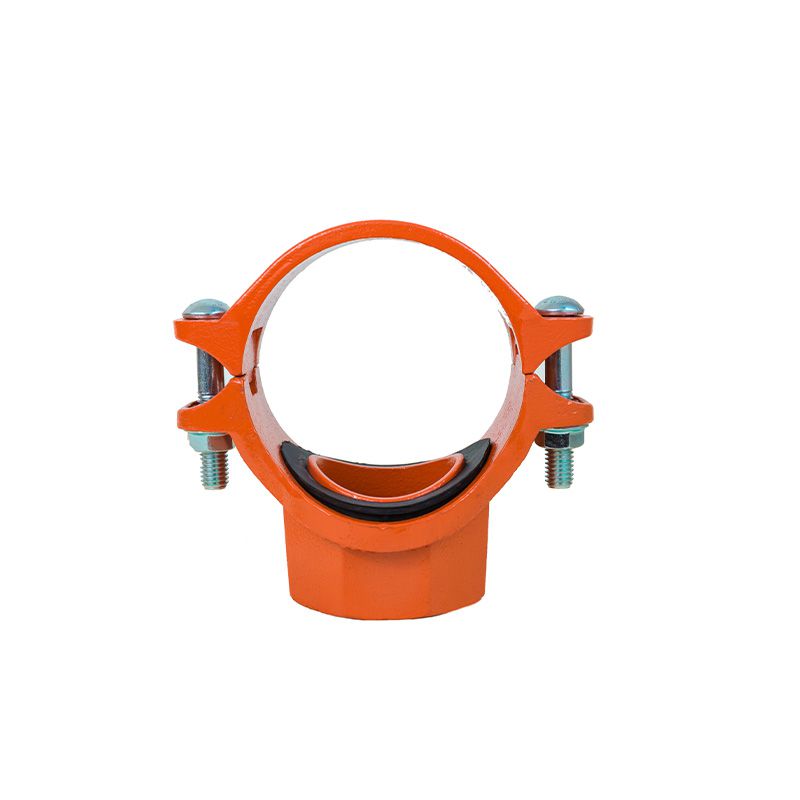

Threaded Mechanical Tee

· Certificate: FM/UL/3C/CE,etc.

· Standard: ANSI/UL 213C

· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.

· Branch: Female thread, NPT / BSPT

· Bolt & Nut: Carbon steel

· Gasket: EPDM, nitrile, silicone rubber, etc.

· Rated pressure: 300~500PSI

· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting

· Color: Molybdate red, but variable colors for choice

Branch outlet fitting is another way of piping innovation, which is the use of bolted connections branch pipe fittings. No need to weld directly from the supervisor on the branch pipe. The method used is in the need to take over the main branch pipe processing a round hole, fitted with branch outlet housing. The opening must be secured on the centerline of the pipe and be mechanically perforated by a dedicated opening.

Inquire Now + NEXT PRODUCT

	DIMENSION								BOLTS SIZE		HOLE SIZE
mm	Y-mm	V-mm	W-mm	Z-mm	Y-inch	V-inch	W-inch	Z-inch	MODEL.No.	inch	mm	inch
60*33	128	62	35	72	5.04	2.44	1.38	2.84	M12X60	1/2X2 3/8	38	1.50
60*42	128	60	35	78	5.04	2.36	1.38	3.07	M12X60	1/2X2 3/8	45	1.77
60*48	128	61	35	78	5.04	2.40	1.38	3.07	M12X60	1/2X2 3/8	45	1.77
73*27	139	63	42	70	5.48	2.48	1.65	2.76	M12X75	1/2X3	38	1.50
73*33	140	69	42	70	5.52	2.72	1.65	2.76	M12X75	1/2X3	38	1.50
73*42	140	71	42	78	5.52	2.80	1.65	3.07	M12X75	1/2X3	45	1.77
73*48	140	71	42	84	5.52	2.80	1.65	3.31	M12X75	1/2X3	51	2.01
73*60	140	73	42	97	5.52	2.88	1.65	3.82	M12X75	1/2X3	51	2.01
76*21	143	68	43	70	5.63	2.68	1.69	2.76	M12X75	1/2X3	38	1.50
76*33	143	68	43	70	5.63	2.68	1.69	2.76	M12X75	1/2X3	38	1.50
76*42	142	69	43	78	5.59	2.72	1.69	3.07	M12X75	1/2X3	45	1.77
76*48	143	69	44	84	5.63	2.72	1.73	3.31	M12X75	1/2X3	51	2.01
76*60	143	74	44	97	5.63	2.92	1.73	3.82	M12X75	1/2X3	51	2.01
89*21	152	69	49	71	5.99	2.72	1.93	2.80	M12X75	1/2X3	38	1.50
89*27	152	71	50	70	5.99	2.80	1.97	2.76	M12X75	1/2X3	38	1.50
89*33	152	77	50	70	5.99	3.03	1.97	2.76	M12X75	1/2X3	38	1.50
89*42	153	79	50	76	6.03	3.11	1.97	2.99	M12X75	1/2X3	45	1.77
89*48	153	79	50	84	6.03	3.11	1.97	3.31	M12X75	1/2X3	51	2.01
89*60	153	79	50	96	6.03	3.11	1.97	3.78	M12X75	1/2X3	64	2.52
114*21	180	85	63	70	7.09	3.35	2.48	2.76	M12X75	1/2X3	38	1.50
114*33	180	88	63	70	7.09	3.47	2.48	2.76	M12X75	1/2X3	38	1.50
114*42	180	89	63	76	7.09	3.51	2.48	2.99	M12X75	1/2X3	45	1.77
114*48	181	90	64	85	7.13	3.55	2.52	3.35	M12X75	1/2X3	51	2.01
114*60	180	92	63	96	7.09	3.62	2.48	3.78	M12X75	1/2X3	64	2.52
114*73	180	99	63	107	7.09	3.90	2.48	4.22	M12X75	1/2X3	70	2.76
114*76	180	99	63	107	7.09	3.90	2.48	4.22	M12X75	1/2X3	70	2.76
114*89	181	101	64	127	7.13	3.98	2.52	5.00	M12X75	1/2X3	89	3.51
140*33	220	100	78	71	8.67	3.94	3.07	2.80	M16X90	5/8X3 3/8	38	1.50
140*42	222	100	78	77	8.75	3.94	3.07	3.03	M16X90	5/8X3 3/8	45	1.77
140*48	222	100	78	84	8.75	3.94	3.07	3.31	M16X90	5/8X3 3/8	51	2.01
140*60	222	102	77	97	8.75	4.02	3.03	3.82	M16X90	5/8X3 3/8	64	2.52
141*27	224	93	76	71	8.83	3.66	2.99	2.80	M16X90	5/8X3 3/8	38	1.50
141*42	225	102	77	76	8.87	4.02	3.03	2.99	M16X90	5/8X3 3/8	45	1.77
165*33	251	103	90	70	9.89	4.06	3.55	2.76	M16X90	5/8X3 3/8	38	1.50
165*42	250	115	89	77	9.85	4.53	3.51	3.03	M16X90	5/8X3 3/8	45	1.77
165*48	251	115	90	85	9.89	4.53	3.55	3.35	M16X90	5/8X3 3/8	51	2.01
165*60	251	119	90	97	9.89	4.69	3.55	3.82	M16X90	5/8X3 3/8	64	2.52
165*76	252	124	89	108	9.93	4.89	3.51	4.26	M16X90	5/8X3 3/8	70	2.76
165*89	252	126	90	128	9.93	4.96	3.55	5.04	M16X90	5/8X3 3/8	89	3.51
165*114	251	124	90	155	9.89	4.89	3.55	6.11	M16X90	5/8X3 3/8	114	4.49
168*27	254	113	91	70	10.01	4.45	3.59	2.76	M16X90	5/8X3 3/8	38	1.50
168*33	252	116	92	70	9.93	4.57	3.62	2.76	M16X90	5/8X3 3/8	38	1.50
168*42	254	117	92	77	10.01	4.61	3.62	3.03	M16X90	5/8X3 3/8	45	1.77
168*48	256	116	92	84	10.09	4.57	3.62	3.31	M16X90	5/8X3 3/8	51	2.01
168*60	256	120	91	96	10.09	4.73	3.59	3.78	M16X90	5/8X3 3/8	64	2.52
168*73	254	126	92	107	10.01	4.96	3.62	4.22	M16X90	5/8X3 3/8	70	2.76
168*76	254	126	91	108	10.01	4.96	3.59	4.26	M16X90	5/8X3 3/8	70	2.76
216*33	317	138	119	71	12.49	5.44	4.69	2.80	M20X115	3/4X4 1/2	38	1.50
216*60	318	145	119	95	12.53	5.71	4.69	3.74	M20X115	3/4X4 1/2	64	2.52
219*33	321	139	118	71	12.65	5.48	4.65	2.80	M20X115	3/4X4 1/2	38	1.50
219*42	321	141	118	77	12.65	5.56	4.65	3.03	M20X115	3/4X4 1/2	45	1.77
219*48	320	138	118	85	12.61	5.44	4.65	3.35	M20X115	3/4X4 1/2	51	2.01
219*60	321	146	119	96	12.65	5.75	4.69	3.78	M20X115	3/4X4 1/2	64	2.52
219*73	322	151	118	108	12.69	5.95	4.65	4.26	M20X115	3/4X4 1/2	70	2.76
219*76	323	152	118	108	12.73	5.99	4.65	4.26	M20X115	3/4X4 1/2	70	2.76
